KEY FEATURES & BENEFITS


Replaceable PTFE filter cap

Self-cleaning Teflon© material keeps measuring elements clean. Super-hydrophobic and field replaceable micro-porous filter cap offers long-term dirt resistance ensures efficient air humidity and temperature transport, while preventing dew and water spray absorbtion in wet environments such as rain forests and roadside sensors.

Benefits

  • Quick humidity recovery after rain or wave impact on buoys

  • Fast sensor response due to high pore density and efficient transport

  • Self-cleaning properties of Teflon keep sensors cleaner longer


Extend your battery life

Ultra-low power consumption not only means higher accuracy, but also extends your weather station battery life. Say goodbye to self-heating with only 800 µA of average combined power consumption.  MeteoTemp's power consumption is 5x lower that the meteorological industry average for digital temperature and humidity sensors.

Benefits

  • Low measurement uncertainty for accurate air temperature

  • Extend the battery life of your weather station

  • Reduce solar panel size for lower weather station cost



Protects against lightning strike

3-stage lightning protection is standard on MeteoTemp and made possible by the use of RS-485 digital output which has inherently high resistance to interference. RS-485 standard is the most widely used communication interface in tough industrial environments. It offers reliability and in combination with MODBUS protocol makes installation and integration of MeteoTemp into your sensor network or industrial SCADA system easy.

Benefits

  • EMC Emissions according to EN50081-1 / IEC61000-6-1

  • EMI Transients according to EN50081-1 / IEC61000-6-2

  • SURGE test 4 kV / 2 kA acc.to EN50082-2 / IEC61000-6-2

  • ESD 15000 V (15 kV)


Keep your sensors clean

In combination with MeteoShield, achieve some of the lowest air temperature uncertainties.

Is your sensor just as dirty as your multi-plate solar shield? (see picture above) Don't keep repeating the same mistake and switch to a helical MeteoShield. Helical shield protects your sensor not only from the sun but also from the elements. Increase your sensor life.

Benefits

  • MeteoTemp + MeteoShield offers meteorological industry's lowest measurement uncertainty.

  • MeteoShield will keep your sensors cleaner and measuring longer.

  • Reduce the effect of rain and snow on your measurements with MeteoShield.


Radiation Shield Comparison RM Young MeteoShield.png

Data traceability made easy

MeteoTemp offers the following features to make traceability of your meteorological network easier and transparent

  • Store calibration values in your sensor for in-the-field interchangeability

  • Recalibration made easy with simple coefficient readout and programming

  • Traceability is assured since each sensor stores its calibration, thus making possible long-term records of sensor performance and direct sensor comparison and interchangeability by comparing sensor calibration constants

  • Easily manage any sensor drift with coefficient tracking for traceability

Calibration info: From a simple offset value to a quintic (x^4) calibration equation, complex calibration is possible. Coefficients with up to 9 significant digits for maximum accuracy can be entered and saved and read out of the sensor via simple MODBUS commands as instructed in the calibration guide.


ELIMINATE SELF-HEATING FROM TEMPERATURE DATA


Where is self-heating error hidden?

Self-heating is an important factor for professional air temperature measurement in meteorology. Low wind conditions cause air to stagnate in most radiation shields, thus uncovering this seldom talked about measurement error. (Helical shields and fan-ventilated shields being the exception) Since self-heating is a problem for most digital humidity and temperature sensor probes, it has limited their use where temperature accuracy is really important. This can be seen by the meteorological industries strong reliance on analog PT100 platinum temperature sensors.

Cost of precision

How much are you paying for each each 0.1 °C of accuracy?  Many times each 0.1°C of accuracy costs hundreds.

Temperature calibration error

Expensive sensor calibrations provide plenty of airflow (or fluid flow) to each sensor during calibration, thus self-heating error remains unseen. In real world applications, the self-heating error can reach over 0.2 °C.

Affordable solution

By reducing MeteoTemp's power consumption to an industry low, 5x lower than industry average, we addressed this problem directly:

  • 820 µA including a pressure sensor with RS-485 MODBUS RTU and ASCII interface and integrated lightning protection.

  • 250 µA with SDI-12 interface (non stock - special order)

Benefit for you, the customer

High quality temperature data of MeteoTemp sensor in combination with lowest air temperature measurement uncertainty of the patented helical MeteoShield Professional surpasses any other available solution on the market.


OVERVIEW & TECHNICAL FEATURES

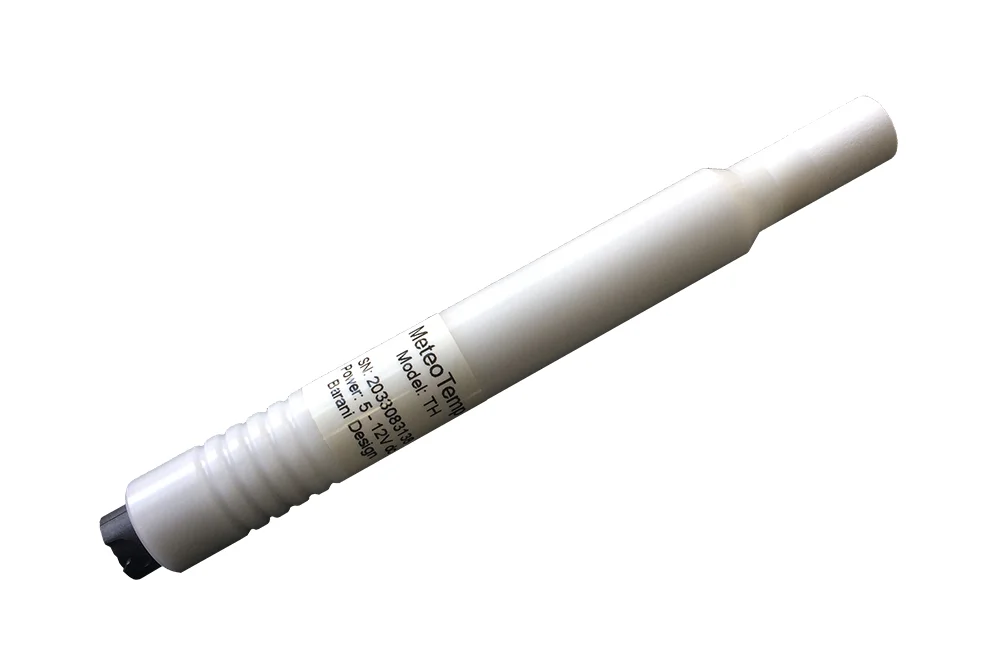

Simply precise with an ultra-low power advantage for long term measurement stability. MeteoTemp eliminates self-heating effects from meteorological measurements.

Precise advantage

  • WMO Temperature measurement accuracy

  • WMO Humidity measurement accuracy

  • Simple calibration interface for traceability logging

  • Bye-bye self-heating errors of digital sensors of the past

Technical features

  • Ultra-low power even when counting-in communication power

  • Teflon (PTFE) screw-on filter cap for easy serviceability & water repulsion

  • Corrosion resistant and hydrophobic white sensor body

  • Bayonet locking waterproof connector with NBR o-rings for very low & high temperatures

  • Versatile industrial interface: MODBUS ASCII & RTU

  • Three stage industrial surge and lightning protection including, transient, EMI, and ESD
