The limit of temperature error of a helical radiation shield.



THE QUESTIONS:

  • If a radiation shield gets soiled and dirty, how does it effect temperature?
  • How dirty can a radiation shield get before unacceptable errors enter your measurements?

““Has anyone tried painting a radiation shield black to find its limits of performance?””
— Jan Barani (CTO)


TEST PROCEDURE:

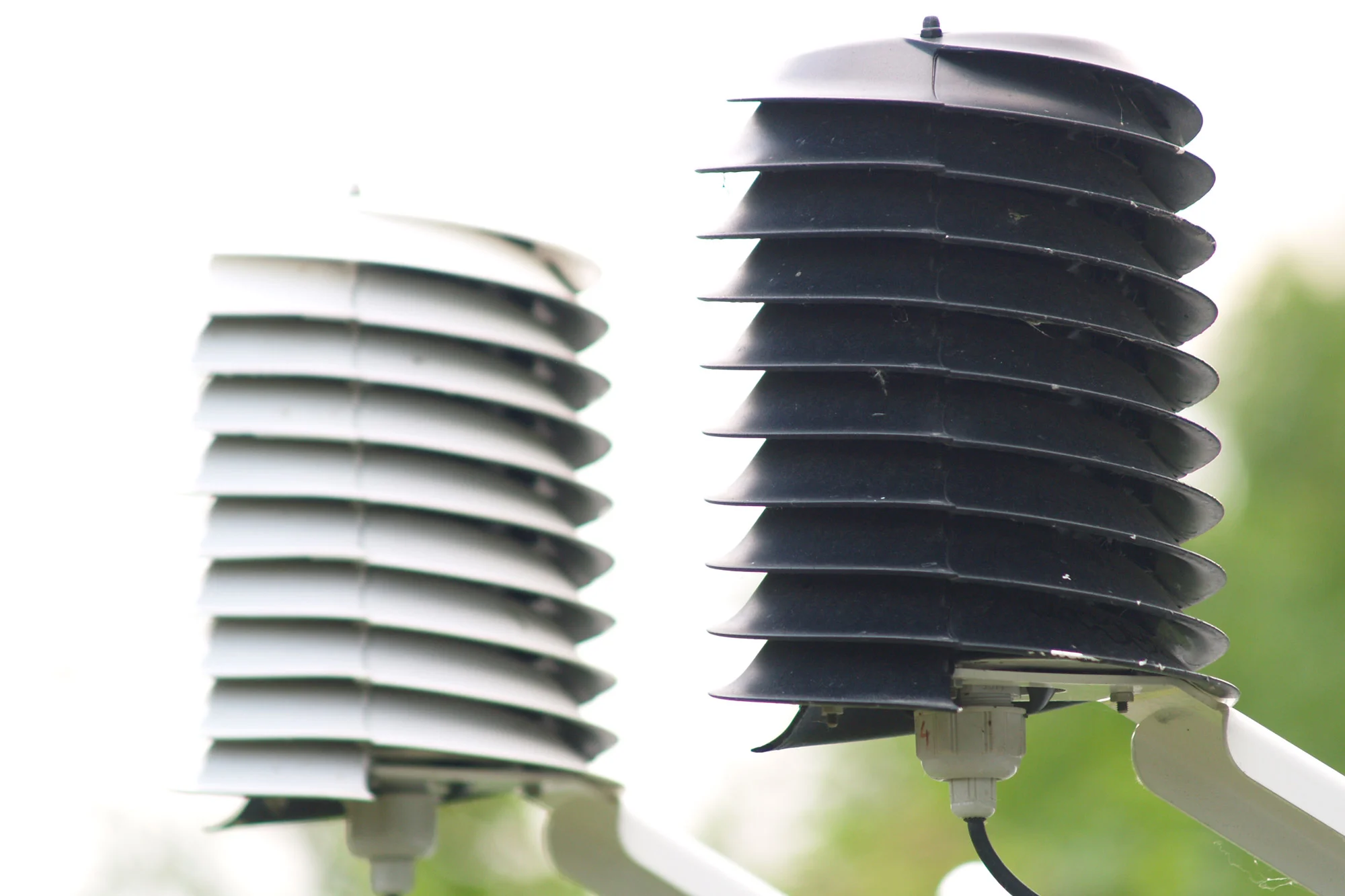

  1. We painted black one radiation shield.
  2. Compared it side-by-side to a clean original factory white shield.
  3. Both shields we mounted side-by-side on a weather station at the same 2 meter height to obtain consistent results.

WEATHER CONDITIONS OF THE TEST:

  • Solar radiation of 1000-1100W/m2 maximum (irradiation)
  • Solar angle 65°...75° (height/elevation of the sun above the horizon)
  • Location with GPS coordinates: latitude 48.1, longitude 17.9.

EVALUATION CRITERIA

Largest sun induced temperature error occurs in windless conditions when sun is at a moderate elevation angle so that a large area of a radiation shield is exposed to solar heating. We chose to group the results into two categories. Conditions with wind less than 1m/s (2.2mph) to record the largest possible measurement error, conditions 1 to 2 m/s (4.4 mph) and conditions with higher wind.

RESULTS: THE POSITIVE SURPRISE

For wind speed above 1 m/s (2.3 mph) and less than 2 m/s, the mean measurement error was 0.31°C for a black painted helical radiation shield with a maximum deviation of 0.43°C.  Even heavy dirt, sand or dust in your application will not come close to the extreme black paint in this test. Therefore, for road-side weather stations, smart city sensors or any dirty environment, the MeteoShield -Professional can be considered maintenance free and dirt buildup will not have a measurable effect on its performance.

  • Real-world dirt and dust accumulation will have no measurable effect on temperature accuracy of METEOSHIELD PROFESSIONAL above 1 m/s.

Below 1 m/s wind speeds, the mean temperature error was only slightly increased to 0.33°C with a maximum recorded short term deviation of 0.47°C.  This was quite unexpected, as below 1 m/s wind speeds, multi-plate radiation shields/screens unusually perform much worse. We attest this uniquely stable temperature measurement to the helical shield design which eliminates the hot-air-bubble effect of traditional designs.

  • Superb temperature stability and resistance to solar radiation error of the helical radiation shield is demonstrated at calm conditions below 1 m/s (2.2 mph).

RADIATION SHIELD COMPARISON TEST RESULTS

Maximum radiation shield error test from dirt buildup.png

MeteoShield temperature increase due to flat-black paint on the solar radiation shield. Temperature error (increase) is shown in Red and corresponding Wind Speed is shown in Blue.

  • Average error was 0.35°C at an average wind speed of 0.6m/s.
  • Max error < 0.6°C on August 4, 2017.
  • Maximum daily temperature reached 35.75°C.
  • Location GPS coordinates:
    • Latitude 48.1
    • Longitude 17.9



WHITEBLACKNOTES
Less than 1m/s wind, Max irradiation 1000-1100W/m2
Max temperature 35.75°C 36.22°C 0.47°C maximum short-term temperature difference
Mean temperature 34.90°C 35.23°C 0.33°C average short-term temperature difference
Min temperature 33.66°C 33.91°C 0.25°C minimum short-term temperature difference
1m/s to 2m/s wind, Max irradiation 1000-1100W/m2
Max temperature 35.71°C 36.14°C 0.43°C maximum short-term temperature difference
Mean temperature 34.85°C 35.16°C 0.31°C average short-term temperature difference
Min temperature 33.69°C 33.91°C 0.22°C minimum short-term temperature difference

MeteoShield Professional will allow you to reach air temperature accuracies of Gold Class AWOS weather stations

  • MeteoShield is becoming the worldwide standard for air temperature measurement

  • MeteoShield is the most cost effective and reliable platform for accurate air temperature measurement


About this test

This test was performed purely out of scientific curiosity. It ran for over three months from April to August 2017 in the Northern Hemisphere (Europe) with GPS coordinates of: latitude 48.1, longitude 17.9. An anemometer (MeteoWind) was always present on the site so that effects of wind can be evaluated. On August 4, 2017 the perfect conditions for evaluation finally arrived with with clear skies, strong sun and high temperatures exceeding 30°C with stable wind below 1 m/s. A prototype pyranometer was installed in early June, before the strongest sun irradiation of the summer solstice so that solar radiation could be evaluated.

  • Test coordinator of this radiation shield comparison is an avid storm chaser and one of the founding members of StormChasers.sk.
  • He is also a member of Barani Design team that invented the helical radiation shield and was the coordinator of prototype testing & evaluation to finalize the design before it went into production.
  • Download raw data from this radiation shield comparison test below or by writing to us via our Contact us page.

HOW THE HELICAL RADIATION SHIELD WORKS

  • The spiral air flow pattern inside the shield maximizes  ambient air flow around the sensor which is the secret to its superb performance.
  • The spiral flow inside the shield has an eye in the center around the sensor (synonymous with the eye of a storm like in a tornado or a hurricane ) where clean air is found without debris or rain drops which keeps your sensor clean for more stable & accurate long-term measurement.

How the spiral vortex flow forms inside helical meteoshield professional.

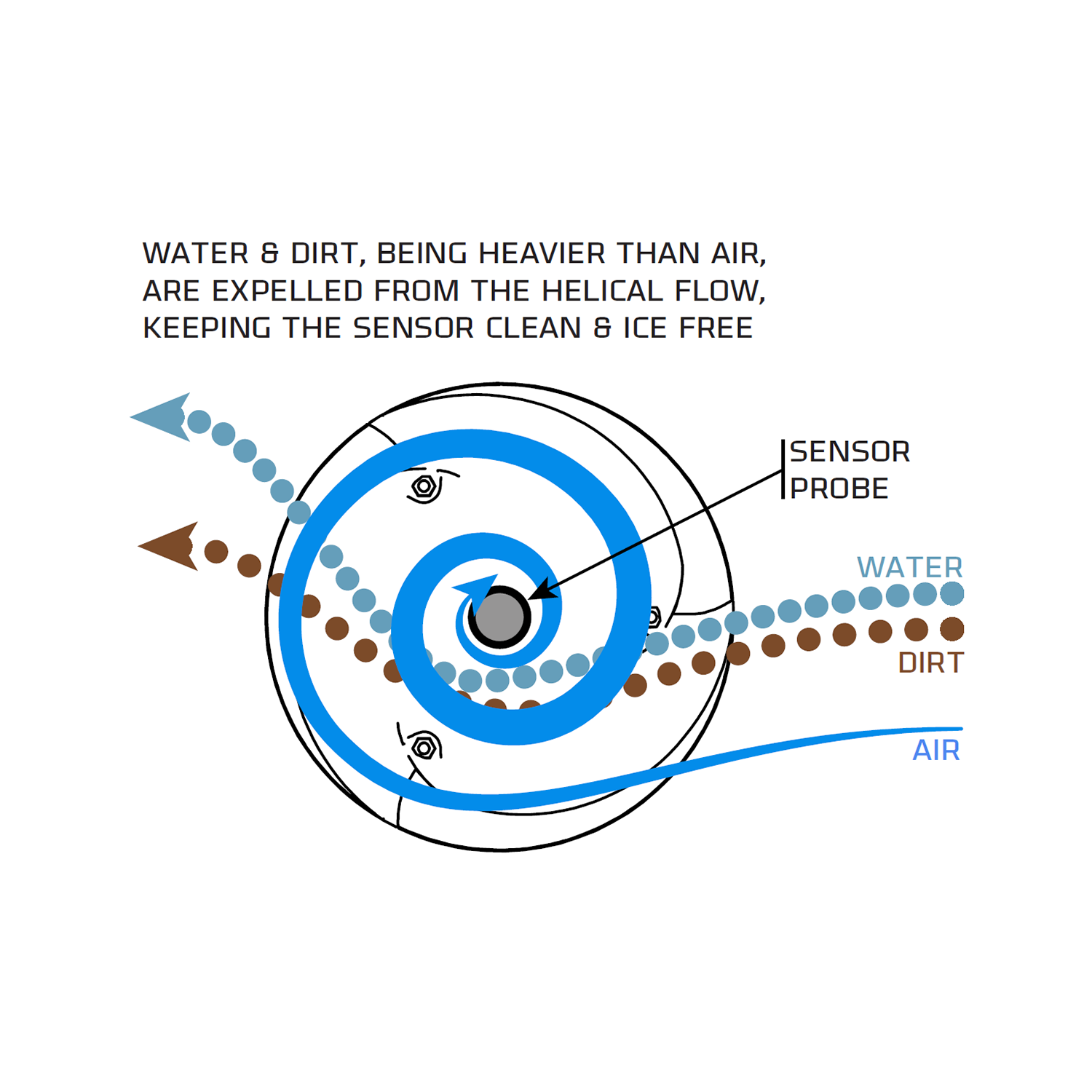

How a helical solar shield protects sensors from dirt, rain and snow.

a perspective view of how a helical radiation shield protects internal sensors form rain, snow and dirt to extend sensor life.
